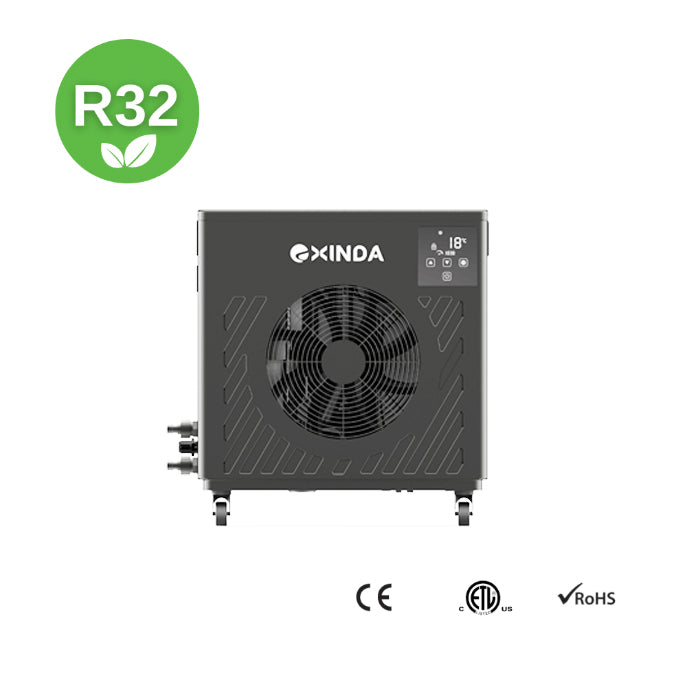

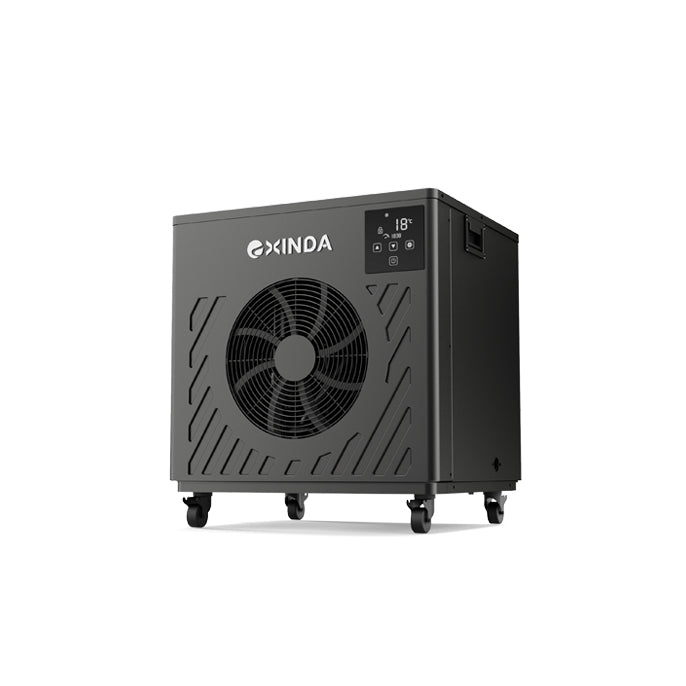

4KW Powerful Heating Heat Pump for Domestic Swimming Pools 220-240V~ /1Ph~50Hz
4KW Powerful Heating Heat Pump for Domestic Swimming Pools 220-240V~ /1Ph~50Hz
Compact Pool Heat Pump, fast heating and cooling for residential use, suitable for hot tub, above-ground pool, portable pool
MODEL: FBMDHSA2B2V4U8
Heating Capacity: 15,000 BTU / 4 kW
Power Supply: · 110-120V / 1Ph / 60Hz (NA) · 220-240V / 1Ph / 50Hz (EU)
Circuit Breaker: 15 Amps
Advised Pool Volume: 10-20 m³ / 2600-5300 Gallons
Operating Air Temperature: -10 ~ 43°C (14°F - 110°F)
Performance Conditions:
Air 27°C (80.6°F) / Water 27°C (80°F) / Humidity 80%
Heating Capacity: 15,000 BTU / 4 kW
COP: 5.1
Air 50°F (10°C) / Water 80°F (27°C) / Humidity 63%
Heating Capacity: 9,900 BTU / 3 kW
COP: 3.82
Casing Type: ABS Casing
Fan Quantity: 1
Fan Power Input: 40 W
Fan Speed: 750 RPM
Fan Direction: Horizontal
Sound Pressure at 1 m: 48 dB(A)
Water Connection: 32 mm (1.25 in)
Water Flow Volume: 1.5 m³/h
Net Dimensions (L/W/H): 370 x 330 x 450 mm (14.56 x 12.99 x 17.71 in)
Refrigerant: R32
Compressor: Inverter
Product Features
High Efficiency: COP rating of 5.1
Quiet Operation: Low noise level of 48 dB(A) ensures minimal disturbance during use.
User-Friendly Mode: Easy to operate with a clear LCD and simple controls.
Durable Construction: Features high-quality components such as Twin-rotary compressor, Titanium heat exchanger, etc.
Energy Saving and Eco-Friendly: Efficient operation reduces costs, and the R32 refrigerant has a low Global Warming Potential (GWP).
Customizable & Durable: Accepts factory customization with a 2-year warranty.
