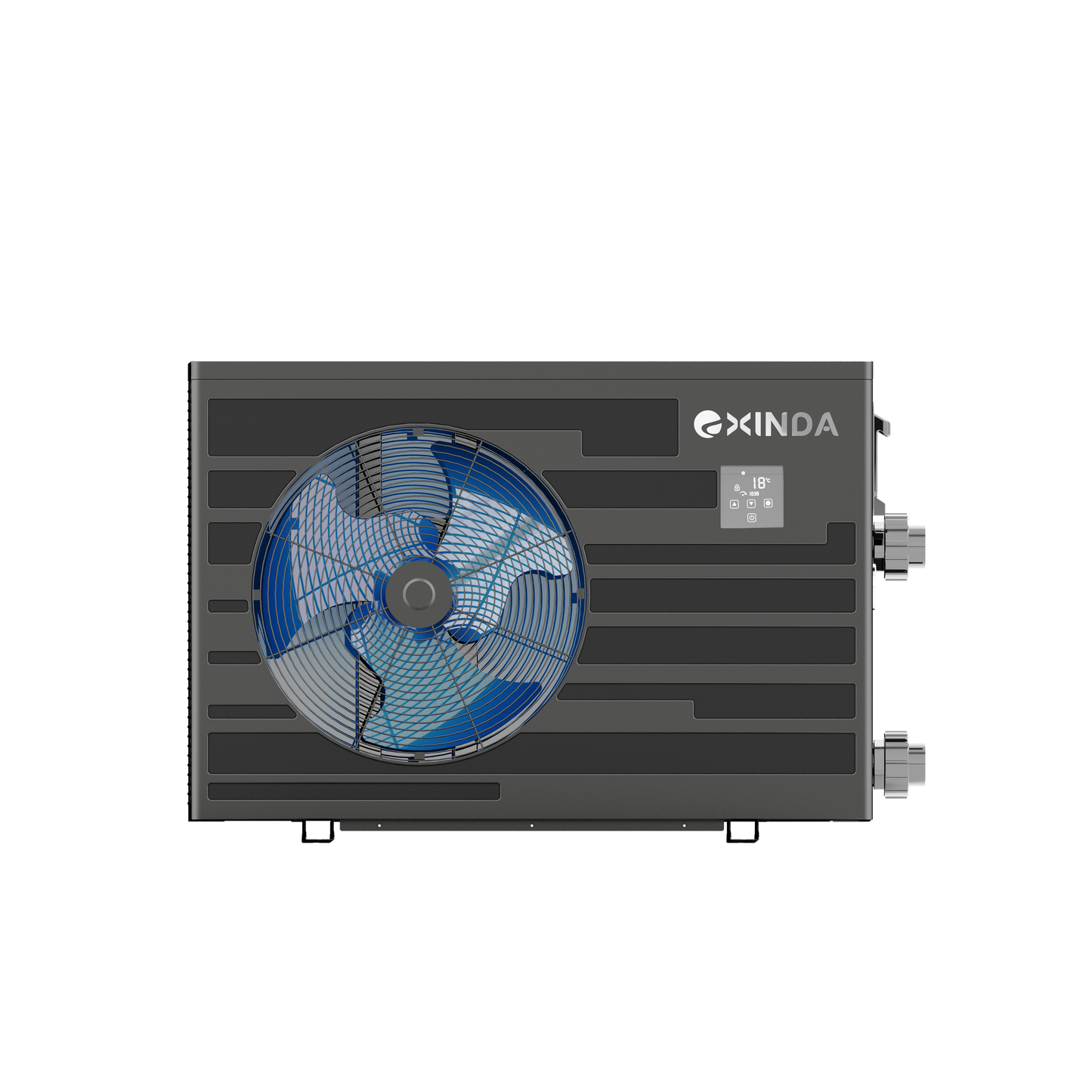

7KW-10KW High-Power Heat Pump for Home Swimming Pools 220-240V~/1Ph~50Hz

R32 Pool & Spa Heat Pump for Vacation Rental Pools, Outdoor Spas and Rooftop Pools.

Design and Structure:

• MODEL: FBMBHSG1B2V4U8 / MBHSH1B2V4U8
  Heating Capacity: 7 kW / 24,000 BTU, 10 kW / 34,000 BTU
  Advised Pool Volume: 18 ~ 35 m³, 25 ~ 50 m³
  Operating Air Temperature: -10 ~ 43°C
  Performance Conditions: Air 26°C / Water 26°C / Humidity 80%, Heating Capacity: 7.5 kW / 25,600 BTU, 10.7 kW / 36,500 BTU, COP: 14.2 ~ 5.8, 14.7 ~ 6.98, COP at 50% Capacity: 10.8, 11.5
  Performance Conditions: Air 15°C / Water 26°C / Humidity 70%, Heating Capacity: 5.9 kW / 20,000 BTU, 7.6 kW / 26,000 BTU, COP: 7.1 ~ 4.9, 7, COP at 50% Capacity: 6.5, 6.6
  Sound Pressure at 1 m: 38 ~ 50 dB(A), 40 ~ 50 dB(A)
  Sound Pressure of 50% Capacity at 1 m: 40 dB(A), 42 dB(A)
  Sound Pressure at 10 m: 18 ~ 28 dB(A), 19 ~ 29 dB(A)
  Compressor: Inverter
  Casing Type: ABS Casing
  Fan Quantity: 1
  Fan Power Input: 45 W, 75 W
  Fan Speed: 400 ~ 800 RPM
  Fan Direction: Horizontal
  Power Supply: 220-240V~/1Ph~50Hz
  Rated Input Power at Air 15°C: 0.19 ~ 1.23 kW, 0.23 ~ 1.75 kW
  Rated Input Current at Air 15°C: 0.76 ~ 5.24 A, 0.85 ~ 6.6 A
  Circuit Breaker: 15 Amps
  Max Input Current: 8 A, 9 A
  Power Cord: 3 * 1.5 mm², 3 * 2.5 mm²
  Advise Water Flux: 2 ~ 4 m³/h, 3 ~ 4 m³/h
  Water Pipe In-Out Size: 50 mm
  Net Dimensions (L/W/H): 930 x 550 x 341 mm
  Refrigerant: R32

Wide Operating Temperature Range: Both models can operate in air temperatures ranging from -10°C to 43°C, making them suitable for a wide range of climates and environments.

 High Heating Capacity: With heating capacities of 7 KW and 10 KW respectively, the XDSPH070C3E and XDSPH100C3E are capable of efficiently heating pools of varying sizes, up to 35m³ and 50m³ respectively.

 Efficient Energy Use: Demonstrated by their high COP (Coefficient of Performance) values, these heat pumps convert a significant amount of electrical energy into heat, making them energy-efficient options for pool heating.
