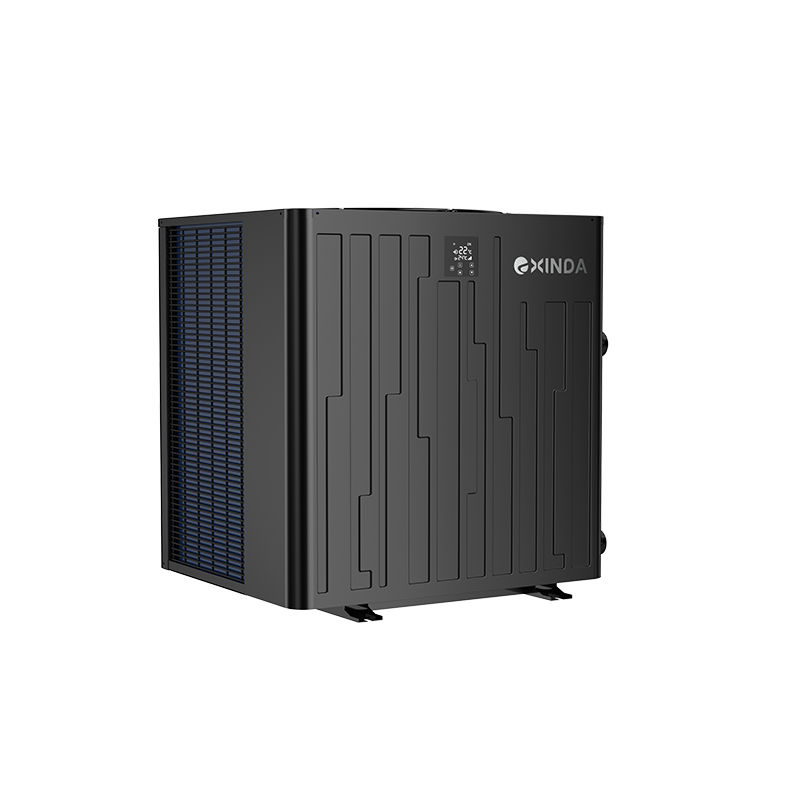

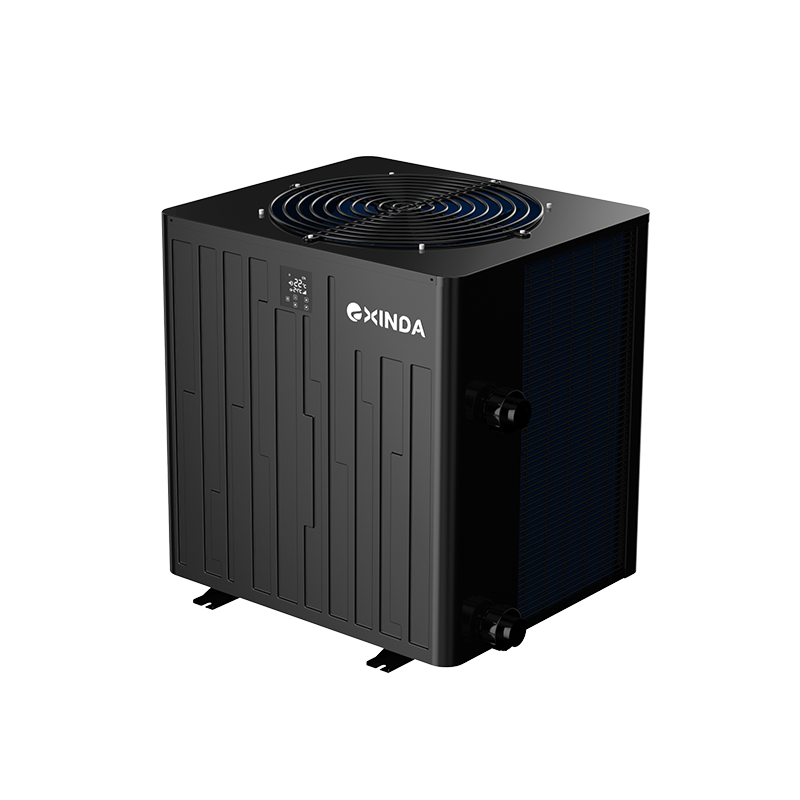

R32 Pool Heat Pump forMedium or Large Residential Pools, Public or Gym Pools.
Design and Structure:
MODEL: FBMBHSD2B2V4U8 / FBMBHSE2B2V4U8 Heating Capacity: 28 kW / 95,000 BTU, 35 kW / 120,000 BTU Advised Pool Volume: 65 ~ 120 m³, 90 ~ 160 m³ Operating Air Temperature: -10 ~ 43°C Performance Conditions: Air 26°C / Water 26°C / Humidity 80%, Heating Capacity: 28.5 kW / 97,000 BTU, 35.5 kW / 121,000 BTU, COP: 14.8 ~ 6.5, 14.8 ~ 6.0, COP at 50% Capacity: 10.9, 10.9 Performance Conditions: Air 15°C / Water 26°C / Humidity 70%, Heating Capacity: 20.5 kW / 70,000 BTU, 28.4 kW / 97,000 BTU, COP: 7.9 ~ 4.8, 7.9 ~ 4.8, COP at 50% Capacity: 6.7, 6.9 Sound Pressure at 1 m: 46 ~ 58 dB(A), 50 ~ 62 dB(A) Sound Pressure of 50% Capacity at 1 m: 48 dB(A), 46 dB(A) Sound Pressure at 10 m: 23 ~ 36 dB(A), 23 ~ 36 dB(A) Compressor: Inverter Casing Type: ABS Casing Fan Quantity: 1 Fan Power Input: 200 W Fan Speed: 500 ~ 900 RPM Fan Direction: Up Charging Power Supply: 380 ~ 400V / 3Ph / 50Hz Rated Input Power at Air 15°C: 0.55 ~ 4.1 kW, 0.65 ~ 5.26 kW Rated Input Current at Air 15°C: 0.78 ~ 5.7 A, 0.9 ~ 7.5 A Circuit Breaker: 15 Amps Max Input Current: 7 A, 9.5 A Power Cord: 5 * 2.5 mm² Advise Water Flux: 10 ~ 12 m³/h, 12 ~ 18 m³/h Water Pipe In-Out Size: 50 mm Net Dimensions (L/W/H): 932 x 990 x 685 mm Refrigerant: R32
Energy Efficiency: Both models are designed to provide high energy efficiency, helping to reduce electricity bills while maintaining optimal pool temperatures.

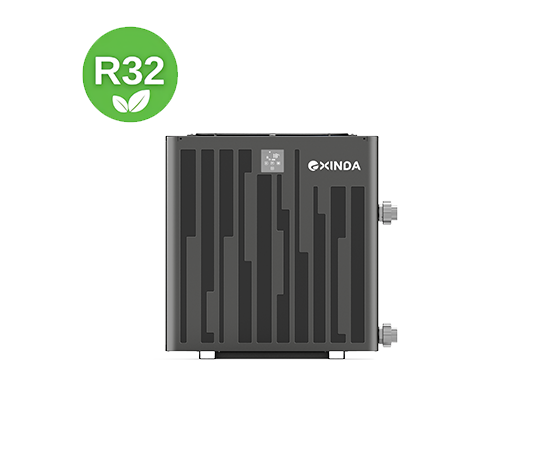

Eco-Friendly Refrigerant: These heat pumps use R32 refrigerant, which has a lower environmental impact compared to traditional refrigerants.
Versatile Application: Suitable for commercial pools, providing flexible heating solutions for different needs.
Customisable for durability: factory customisation accepted.
